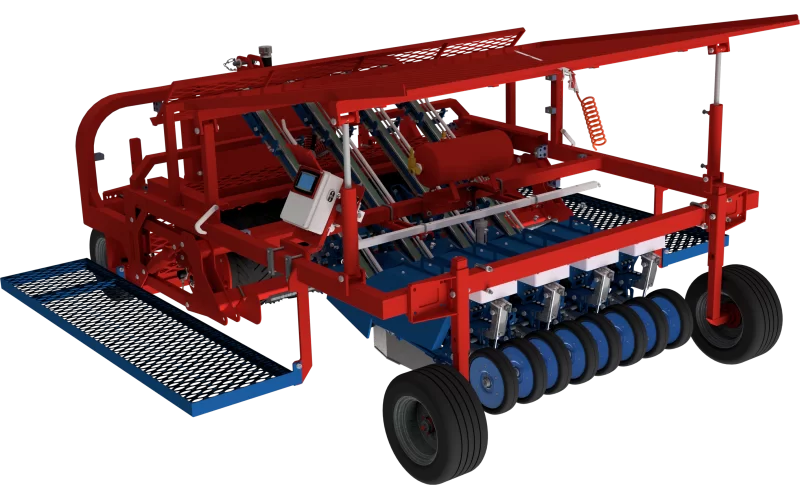

FASTBLOCK Semi-automated Transplanter

FASTBLOCK Semi-automated Transplanter

The most innovative cube transplanter!

FASTBLOCK Semi-automated Transplanter

HP 80 ÷ 200

120 ÷ 225 cm / 47" ÷ 88"

25 ÷ 60 cm / 9,8" ÷ 23,6"

7.500

plants/hour per row

MAXIMUM PRODUCTIVITY PER OPERATOR


The semi-automatic transplanting that is able to transplant compressed cubic clods between 3.2 and 5 cm: thanks to the modular and componibles units of which it is composed, it allows to reach non-existent dead times and maximum precision in the positioning of the plant.

1 only operator

FOR TWO TRANSPLANT ROWS

  • Perfect for vegetables such as: salads, brassicas, celery, all similar seedlings with a height of min 6cm and max 15cm
  • Versions available: 3-point hitch, draw-bar, self-propelled
  • Frame: single-bed or multi-bed



  • Rubber roller with adjustable pressure
  • Memoplant (historical archive of transplant data exportable on SD card)
  • PSC (Plant Spacing Control - Hydraulic gearbox as an alternative to the mechanical one with display to set plants per hectare / distance on the row)
  • Electronic regulation por pincers opening

Fastblock works only with square blocks (from 3 to 5 cm on each side). Row width can be adjusted starting from 23 cm by using a very narrow ploughshare (only 7.5 cm). The innovative robotic grabbers can handle both short and tall plants at high speed, without damaging them.

Able to operate in line and in diamond, digital sign of the distance on the row from 10 cm to 100 cm, the hourly yields per element up to max 7000 plants / hour while the speed varies up to 2.5 km / h.
