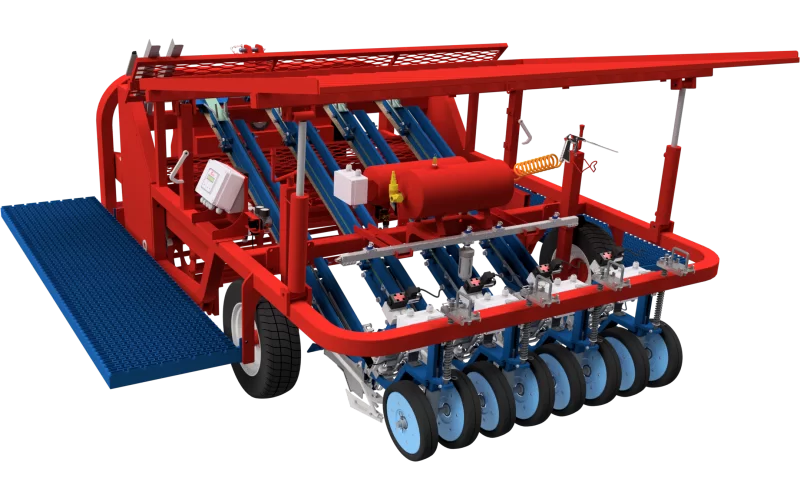

ROTOSTRAPP Transplanter

Transplant lettuces and vegetables to a height of less than 10 cm!

HP 80 ÷ 200

120 ÷ 225 cm / 47" ÷ 88"

28 ÷ 60 cm / 11" ÷ 23,6"

Download data sheet ROTOSTRAPP

Request informations BOOK YOUR CALL

8.000

plants / hour per row

MAXIMUM PRODUCTIVITY YIELD PER OPERATOR

Semi-automatic transplanter for seedlings in cube (side from 3.8 to 4.5 cm). It is particularly suitable for transplanting salads and other vegetables that have a maximum height of 8-10 cm. It is made of modular and modular units both in the towed and self-propelled version.

1 operator

FOR TWO ROWS OF TRANSPLANT

Perfect for vegetables such as: salads, brassicas, celery and all similar planted vegetables with a height of min 6cm - max 10cm.
Available versions: 3 point hitch, with draw bar, self propelled
Frame: single-bed, multi-bed

Rubber roller with adjustable pressure
Memoplant (historical archive of transplant data exportable on SD card)
PSC (Plant Spacing Control - Hydraulic gearbox as an alternative to the mechanical one with display to set plants per hectare / distance on the row)
Electric depth adjustment

The machine works with solid blocks (the peat in the pot needs to be well pressed) and the side of the block can go from 3.6 up to 4.6 cm. The minimum distance between the rows starts from 28 cm. This transplanter can operate both in straight line and in “diamond” in order to guarantee a constant and uniform growth of the plants. The working capacity per hour can go up to 8,000 plants per hour with a speed of up to 2.5km / h.
