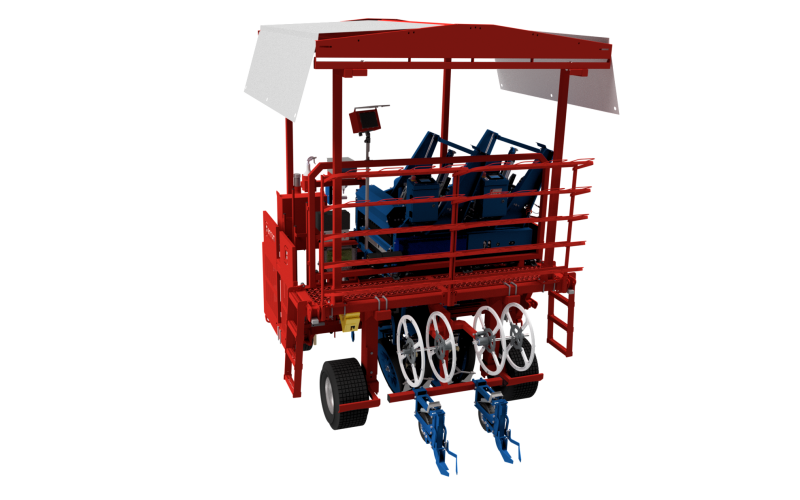

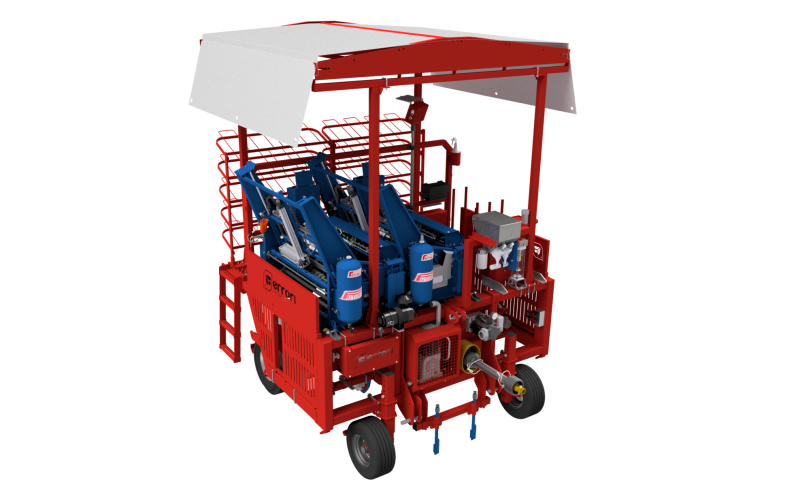

FUTURA GO / FUTURA GO TWIN Transplanter

The most innovative transplanter ever!

FUTURA GO

FUTURA GO TWIN

Download data sheet FUTURA TWIN

BOOK YOUR CALL

12.500

plants / hour per row

Maximum productivity yield per item

Automatic transplanter to plant seedlings in trays (diameter from 15 to 36 mm)

1 only operator

PER MACHINE

Vegetables: tomatoes, lettuce, brassicas, peppers, celery, herbs, flowers, all other similar seedlings with a height of min. 6 cm to max. 25 cm
Operators: 1 per machine
Versions: mounted, semi-mounted, trailed, self-propelled (wheeled / tracked)
Hourly productivity per robot: up to 12,500 plants/h (output may vary depending on the seed tray and the quality of the seedlings)

Electronic control of transplanting units and accessories via a single operator panel
Automatic timing control (plant drop time)
Electronic optimization of plant extraction gripper speed
Recovery of missing plants via plant detector
Recovery of empty seed trays via a zero-collision stacker
Ejection of plants through the drainage hole (without damaging the root system)
ISOBUS connectivity
Hydraulic pressure of the packing wheels adjustable via the operator panel
Electric adjustment of working depth via the operator panel
High adaptability to commercial seed trays
High tolerance to different soil types

The machine works by itself (only one operator is required to feed the transplanter robots with trays). Every robot extracts the seedlings using a technology based on cylindrical plungers combined with moving fingers. There is no need to use a specific tray to run FUTURA, the machine will be adapted to the tray selected by the user: this is one of the features that makes the Ferrari automated planter a very innovative and versatile machine.

The plants will then be grabbed by mobile pliers which will place them in the dispenser.
