Transplanters / Tray Transplanters

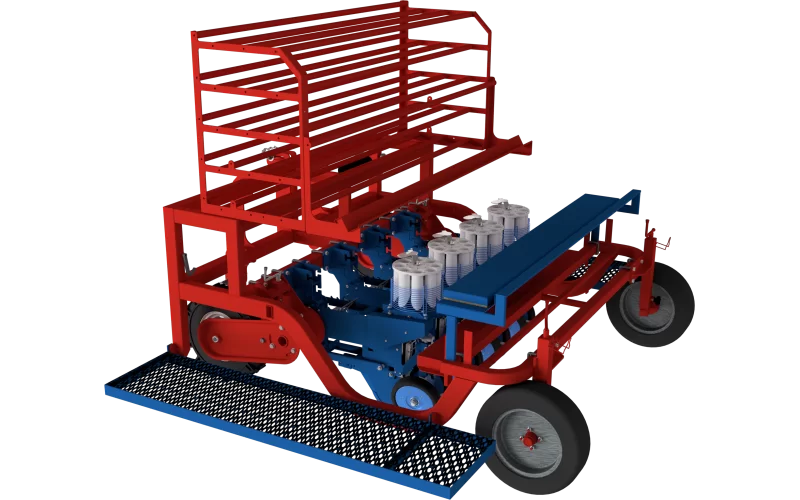

FX and FX MULTIPLA Transplanter

Transplant your lettuce to the utmost efficiency!

FX MULTIPLA

HP 40 ÷ 150

120 ÷ 225 cm / 47" ÷ 88"

28 ÷ 75 cm / 11" ÷ 29,5"

FX MULTIPLA

HP 80 ÷ 200

120 ÷ 225 cm / 47" ÷ 88"

23 ÷ 60 cm / 9" ÷ 23,6"

Download data sheet FX MULTIPLA

BOOK YOUR CALL

8.000

plants / hour per row

MAXIMUM PRODUCTIVITY PERFORMANCE PER OPERATOR

Mechanical transplanter for alveolus seedlings. Rotating distributor machine designed for normal or pre-compressed vegetables in clods of any shape (cylindrical-conical-pyramidal), created for the most difficult problems related to the transplantation of salad and radicchio.

1operator for row with FX

1operator for 2 rows with FX Multipla

Perfect for vegetables such as: salads, brassicas, celery, fennel, all the other vegetables similar to the previous ones with a height of min 6cm and max 18cm.
Versions: 3 points hitch, draw-bar and self-propelled
Frame: fixed - folding frame

Rubber roller with adjustable pressure
PSC (Plant Spacing Control - Hydraulic gearbox as an alternative to the mechanical one with display to set plants per hectare/distance on the row)
Microgranulator
Fertilizer spreader
Intermittent water dispenser
Tank (capacity 300 lt)
Rear forks for full pallet loading
Memoplant (historical archive of transplant data exportable on SD card)
Hydraulic adjustment of element pressure
Electric depth adjustment
Front discs

The transplanter carousel is turning in clockmotion (STOP&GO). This specific feature is extremely important to guarantee a constant drop of the plants from the top to the ground. The clockmotion allows to increase the performance per hour, the precision of planting depth and distance in the row. FX is equipped with a self-cleaning kicker in the ploughshare.
